SPC wireless Overview

Extended range

Vanderbilt’s SPC wireless range can extend up to 500 meters

Extended battery life time

Vanderbilt SPC Wireless battery life is > 5 years

Vanderbilt uses the industry-leading Energizer® and Varta lithium batteries

Speed of installation

SPC Wireless installation is hassle free

Configurable ‘Over-the-air’

The settings for the SPC Wireless range are all configurable over the air

SPC 3.13

  • Best in class stylish design
  • Advanced & secured 2 way RF protocol
  • Superior range and reliability specification
  • Low Current Technology
  • Battery Operation up to > 5 years
  • Common batteries across all peripherals
    (AAA Lithium Iron Disulfide and CR123A)
  • Designed to EN security standards
  • New plugin module transceiver module for SPC
  • Adds support for the New Two-Way Wireless keypad (WKP-SIM)
  • Download our new wireless calculator

SPC 2-way wireless how to configure from the the SPC Web page

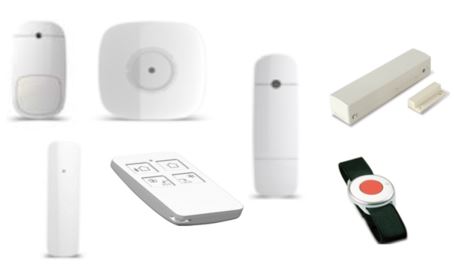

SPC Enhanced Wireless Product Range

Wireless Transceiver with Antenna - SPCW120

The SPCW120 transceiver provides a wireless interface for the SPC controller that enables wireless devices to be enrolled on the system.

The device comes already with an antenna cable and a tamper lead.

Part code - V54554-B106-A100

Wireless 12m PIR Detector (Volumetric)

The WPIR has a detection range of 12 meters (Volumetric) and can be configured for use in any environment.
In addition, the device uses enhanced, low current RF technology that provides superior communication and ensures long battery life.

Key Features WPIR:

  • 12m detection coverage
  • 1x Lithium 3V battery type CR123 / Size 2/3AA
  • Automatic Power Saving (APS)
  • Battery life time > 5 years
  • Transmission range up to 500m
  • PET immunity up to 25kg
  • Front and back tamper protection
  • Over the air configuration
  • EN Grade 2 approved

Part code - V54538-F109-A100

Wireless 12m PIR Curtain Detector

The WPIR-CRT has a detection range of 12 meters (Curtain) and can be configured for use in any environment.
In addition, the device uses enhanced, low current RF technology that provides superior communication and ensures long battery life.



Key Features WPIR:

  • 12m detection coverage (curtain mirror)
  • Slim aesthetic design
  • 1x Varta Lithium 3V CR123A battery
  • LED guided walk test
  • Battery life time > 5 years
  • Transmission range up to 500m
  • Front and back tamper protection
  • EN Grade 2 approved

Part code -V54538-F110-A100

Wireless Magnetic Contact (slim design)

The WMAG magnetic contact detector is slim and stylish and can be installed in seconds. This device is easy to mount, easy to pair and easy to configure ensuring installation time is minimized.

Key Features WMAG:

  • Highly accurate hall effect sensors
  • Slim aesthetic design
  • No screws - adhesive fixed
  • 2x Energizer 1,5V AAA batteries
  • Left OR Right magnet placing
  • LED guided walk test
  • Battery life time > 5 years
  • Transmission range up to 500m
  • Front and back tamper protection
  • EN Grade 2 approved

Part code - V54538-F111-A100

Wireless Magnetic Contact (with input)

The WMAG-I magnetic contact detector supports the wiring of an external input device.
This device is easy to mount, easy to pair and easy to configure ensuring installation time is minimized.

Key Features WMAG-I:

  • A highly accurate reed switch
  • Slim aesthetic design
  • Support for external input
  • 1 x Varta Lithium 3V CR123A battery
  • LED guided walk test
  • Battery lifetime > 5 years
  • Transmission range up to 500m
  • Front and back tamper protection
  • EN Grade 2 approved

Part code - V54538-F114-A100

Wireless Smoke Detector

The WSMK is a slim and stylish wireless smoke alarm, which is supported by the SPC system. The device has an internal siren for local audible indication and will activate all associated warning devices connected to the SPC system. The device is easy to install and quick to enrol onto the SPC system.

Key Features WSMK:

  • Slim aesthetic design
  • LED Control over the Air
  • Battery life 10 Years
  • CPR approved to EN14604
  • Autonomous or system based operation
  • APS Automatic Power Saving
  • Transmission range up to 500m
  • Quick install and enrollment process

Part code -  V54538-F113-A100

Wireless Remote Keypad

The WKP-SIM is a multi-functional remote keypad that allows a user to interact with their SPC system. The device supports common functions such as Set, Unset and Part set as well as Panic, Medic and Fire function keys. It also supports Icon driven Annunciations with function and Alert responses.

Key Features WKP-SIM:

  • Fully supervised – Low battery monitoring
  • 3 year Battery life
  • Supports RFID Tags – Pin and tag confirmation
  • Full set Part set and unset functions
  • Icon driven Annunciations with function and Alert response
  • Panic, Medic and Fire function keys
  • Quickset options for both Fullset and Partset
  • LED Mode indication
  • Quick and easy enrollment process
  • EN Approved G2
  • Easy battery exchange 2 x Energizer L91 Lithium batteries Type AA
  • Max 8 WKP-SIM per SPC system

Part code - V54543-F154-A100



Wireless External Bells

The WSIR-EXT-B is a two way wireless external sounder/beacon with a blue lens.
The audible and visual outputs are independently controlled via the SPC panel.

Key Features WSIR-EXT:

  • Automatic pairing on battery insertion LED guided Enrolment
  • Pair at low level prior to installation
  • Unique serial number for each device
  • Output control for audible and visual outputs
  • Adjustable supervision time
  • Full output control from SPC
  • Transmission range up to 500m
  • Battery lifetime 3 years, 5 years if external power supply is used.
  • Easy to install
  • EN Grade 2 approved

Part codes:

V54538-F116-A100  Blue Lens

V54538-F116-A200  Red Lens

V54538-F116-A300   Orange Lens



Wireless Internal Siren

The WSIR-INT is a two way wireless internal siren
The audible and visual outputs are independently controlled via the SPC panel.

Key Features WSIR-INT:

  • Automatic pairing on battery insertion LED guided Enrolment
  • Pair at low level prior to installation
  • 4 Volume levels
  • Output control for audible and visual outputs
  • Adjustable supervision time
  • Full output control from SPC
  • Transmission range up to 500m
  • Battery lifetime 5 years.
  • Easy to install
  • EN Grade 2 approved

Part code -  V54538-F115-A100

Wireless Remote Control

The WRMT is a multi-functional remote control that allows a user to interact with their SPC system. The device supports common functions such as Set, Unset and Part set as well as a user programmable output function and an SOS panic feature.

Key Features WRMT:

  • 1x Energizer® CR2032 (replaceable)
  • Battery lifetime > 5 years
  • Transmission range up to 150m
  • Easy to pair and easy to remove from SPC system
  • Intuitive LED operation
  • Configurable ‘Function’ button – can be assigned to activate an output (e.g. Garage Door), or to trigger a setting an SPC setting procedure
  • SOS/Panic functionality (Dual button press)

Part code - V54543-F117-A100

Wireless Panic Button

The WPAN Personal transceiver is a device that is used to transmit Panic Alarm messages to the SPC system.

Depending on User preference:

  • WPAN can be worn as a wrist watch
  • WPAN can be worn as a pendant

Key Features WPAN:

  • Battery life time > 5 years
  • Transmission range up to 500m
  • Easy to pair and easy to remove from SPC system
  • Intuitive LED operation

Part code - V54543-F118-A100

Wireless Repeater

Vanderbilt’s WRPTR provides an alternative, wireless communications path between
the wireless devices and the SPC control panel. This device is easy to mount, easy to
pair, and easy to configure, ensuring installation time is minimized.

Key Features WRPTR

  • Extends system range
  • Provides alternate communications route
  • Rechargeable Battery Backup 10 hours
  • Up to 500m transmission range
  • APS Automatic Power Saving
  • Configurable Supervision time
  • Monitored for tamper, mains fail and low battery

Part code - V54554-F107-A100

SPC 2-way wireless how to configure from the SPC keypad

Download SPC 3.13.1 Firmware

[inbound_forms id="21439" name="SPC 3.13"]

SPC 3.13

Supports new Wireless Phase 3 devices

  • 2-Way Wireless Keypad
  • 2-Way Wireless External Sounder
  • 2-Way Wireless Internal Sounder
  • 2-Way Wireless Plugin Repeater

Additional material

Would you like to know more?

SPC provides a range of manuals in order to support you if you would like to know please contact us and book your demo
